ADA Cylinder Head Dome - Kawasaki 750

ADA Cylinder Head Dome - Kawasaki 750

SKU:KA7522

In stock

Regular price $44.95 USD
Regular price Sale price $44.95 USD
Sale Sold out
Shipping calculated at checkout.

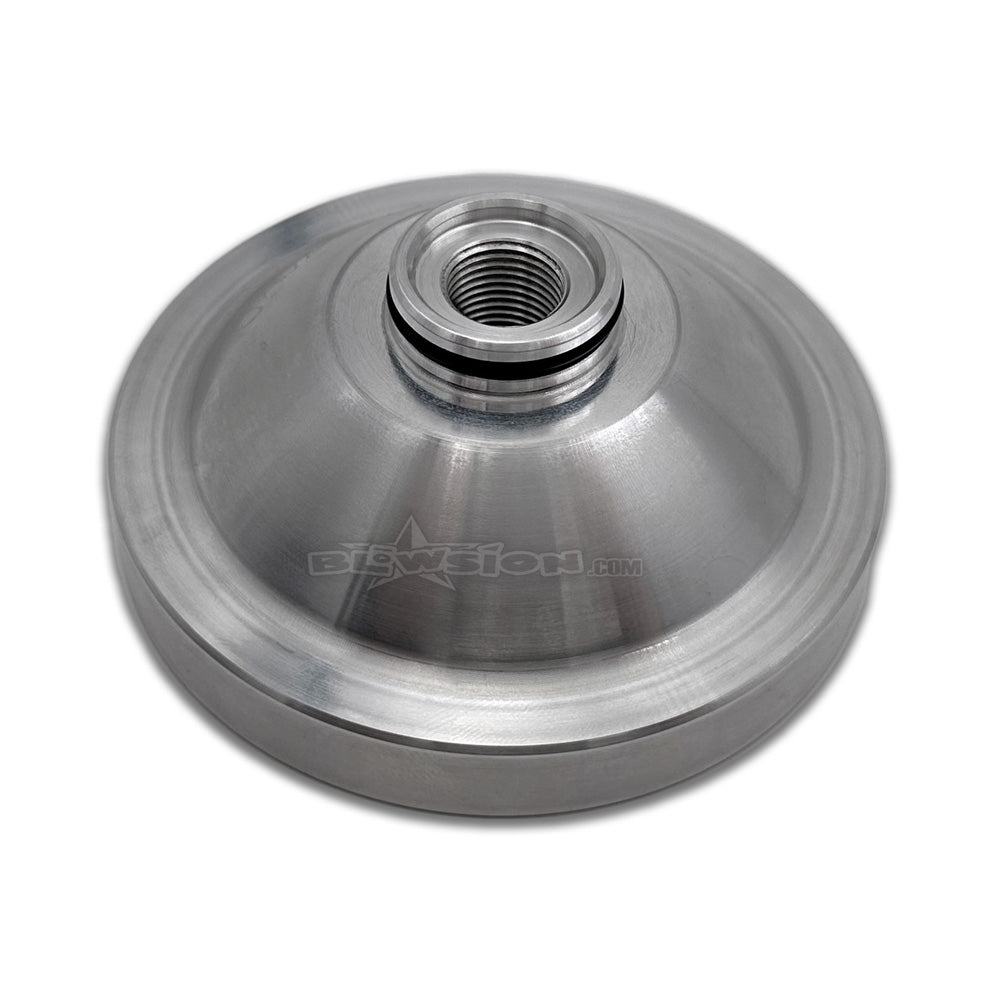

ADA Racing Billet Cylinder Head Dome for Kawasaki 750. Includes compression (OR042) and dome top (OR020) o-rings. Squish relief is 0 @ 81mm with a 4 degree angle. These domes fit ADA Racing standard 750/800 Cylinder Head and ADA Racing original girdled head with the billet brackets.

Sizes / Compression

  • PN# KA7522 - 22cc (210lbs / 110 Octane - add 15lbs for 750SX Models)
  • PN# KA7524 - 24cc (195lbs / 100 Octane - add 15lbs for 750SX Models)
  • PN# KA7526 - 26cc (180lbs / 92 Octane - add 15lbs for 750SX Models)
  • PN# KA7528 - 28cc (165lbs / 91 Octane - add 15lbs for 750SX Models)
  • PN# KA7530 - 30cc (150lbs / 89 Octane - add 15lbs for 750SX Models)

The Kawasaki 750SX (1992-1994) model will have about 15lbs higher compression than the readings shown in the dome drop down above. You will then also need to adjust the octane requirements accordingly. All compression readings are on stock non-ported cylinders at sea level elevation. Cylinder porting will lower compression as well as increase in elevation. Compression will drop approximately 7lbs for every 1000ft increase in elevation. Ported cylinders will affect compression differently depending on how much the opening duration of the exhaust port was increased. On ported cylinders there is no way for us to know what the compression will be without a beginning reference point.

NOTE: Domes are sold individually.

Dome Cc
